| Conductor |
: |
7N Cu D.U.C.C Stressfree 0.26ø x 19 strands x2 cores |
| Insulation |
: |
High molecular Polyolefin resin |
| Inner sleeve |
: |
High molecular Polyolefin resin with amorphous powder |
| Shielding |
: |
Copper foil tape + sliver plated copper wire + black UEW |
| Outer sleeve |
: |
Anti UV Polyurethane |
| Conductor resistance |
: |
17 mΩ/m |
| Electrostatic capacitance |
: |
69 pF/m |
| Cable diameter |
: |
10.0mm |
|
| Center contact pin |
: |
Hollow shaped Tellurium copper |
| Outer contact parts |
: |
Beryllium copper |
| Plating |
: |
Rhodium |
| Cover |
: |
Aluminum + Carbon fiber |
|
| Male contact pins |
: |
Hpllow shaped Tellumrium copper |
| Female contact pins |
: |
Beryllium copper |
| Plating for contact pins |
: |
Rhodium |
| Outer body |
: |
Brass + carbon fiber |
| Impedance |
: |
110Ω |
UEW stands for Urethane Enameled Wire.

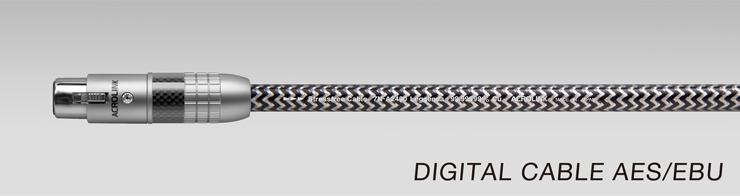

Standard length of 7N-A2400 Leggenda series are 1.0m and 1.5m.
Spacial length order available. |
|
| Fe |
Ni |
Si |
Al |
| 0.03 |
0.003 |
0.04 |
0.005 |
| S |
Ag |
Na |
K |
| 0.05 |
0.04 |
0.004 |
< 0.005 |
| U |
Th |
H |
O |
| < 0.0002 |
< 0.0003 |
< 0.03 |
< 1.0 |
|
| Typical Analysis(impurities) |
ppm/GD-MS Gas Analysis |
|
●The standard, the specification, and the price of the product might change without a previous notice.
●"ACROLINK®" and "Stressfree®" are registered trademarks of Acro Japan Co., Ltd.
●"D.U.C.C.®" is a registered trademark of Mitsubishi Materials Corporation.
|
|
|
|
|
|
