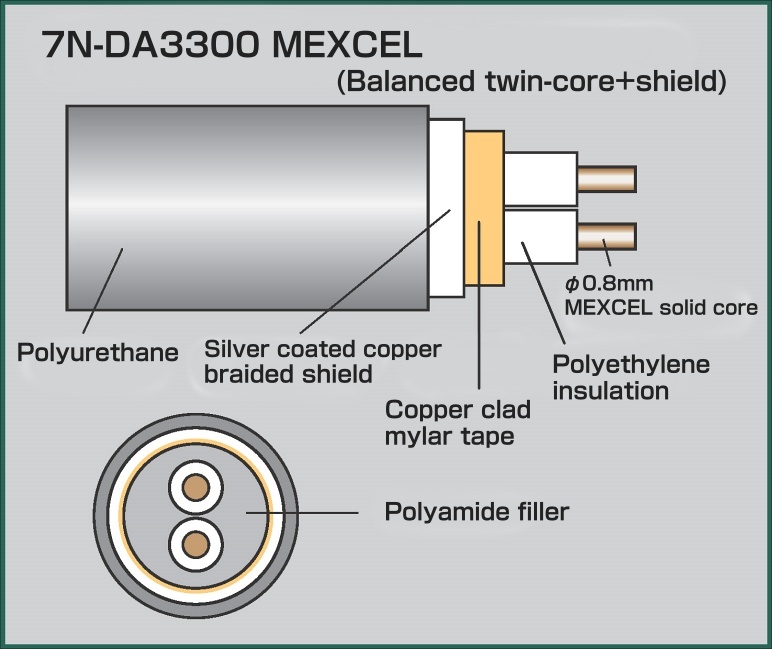

| Conductor |
: |
7N Cu MEXCEL solid core 0.8mm×2 (Balanced twin-core structure) |
| Insulation |
: |
Polyethylene |
| Shielding |
: |
Copper clad mylar tape + silver plated copper braided wire |
| Outers sleeve |
: |
UV resistant Polyurethane |
| Conductor resistance |
: |
36.4 mΩ/m |
| Impedance |
: |

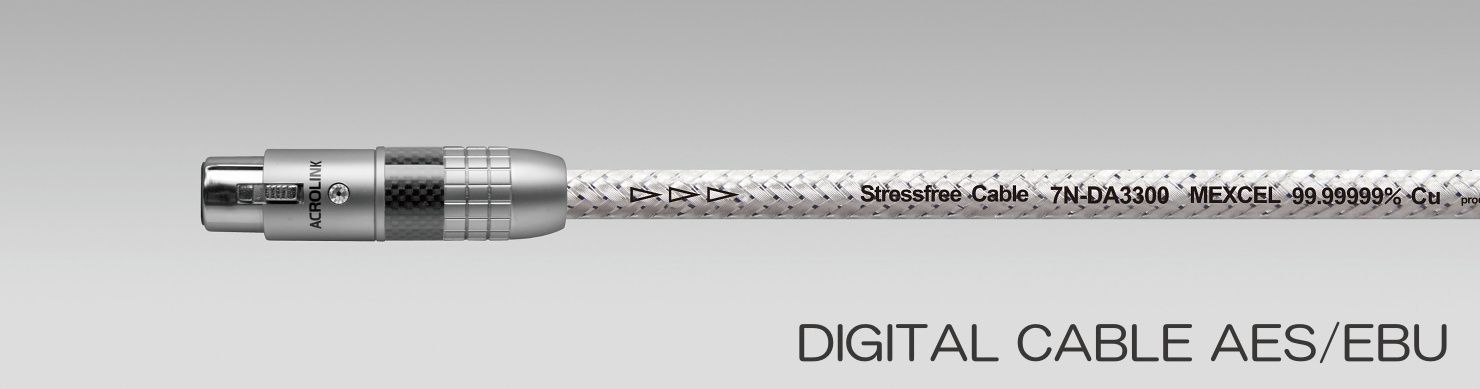

110 Ω(XLR & AES/EBU) |
| Cable diameter |
: |
9.5 mm |
|
| Positive terminal |
: |
Tellurium copper |
| Negative terminal |
: |
Beryllium copper |
| Plating |
: |
Mirror polish treatment with direct rhodium plating |
| Outer body material |
: |
Aluminum + Carbon fiber |
|
| Contact terminal |
: |
Phosphor bronze |
| Terminal plating |
: |
Direct rhodium plating |
| Outer body material |
: |
Brass |
MEXCEL is a conductor insulation technology using a system called MEDIS®(Mitsubishi Electro Deposition Insulation System)
which is developed and patient technology by Mitsubishi Cable Industries Ltd. Each conductor is perfectly and evenly insulated |
| Stranded length for 7N-DA3100 MEXCEL is 1.0m and 1.5m pair. Special length order available. |
|
| Fe |
Ni |
Si |
Al |
| 0.03 |
0.003 |
0.04 |
0.005 |
| S |
Ag |
Na |
K |
| 0.05 |
0.04 |
0.004 |
< 0.005 |
| U |
Th |
H |
O |
| < 0.0002 |
< 0.0003 |
< 0.03 |
< 1.0 |
|
| Typical Analysis(impurities) |
ppm/GD-MS Gas Analysis |
|
●The standard, the specification, and the price of the product might change without a previous notice.
●"ACROLINK®" and "Stressfree®" are registered trademarks of Acro Japan Co., Ltd.
●"D.U.C.C.®", "MEXCEL®" and "MEDIS®" are registered trademarks of Mitsubishi Materials Corporation.
|
|
|
|
|
|
