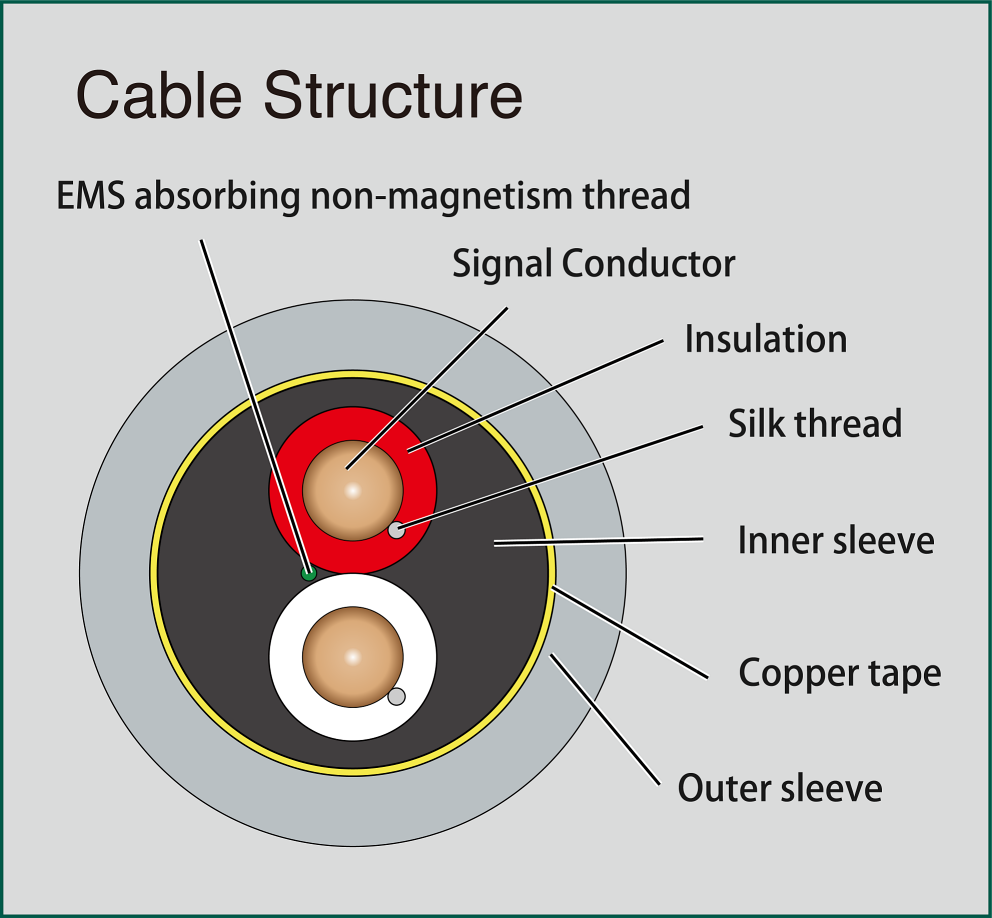

| Outer diameter |
: |
10.6mm |
| Single Conductor |
: |
7N D.U.C.C Stressfree 0.37ø × 18 Strands(2 cores) |
| Single Conductor size |
: |
1.93 Sq(AWG 14) |
| Insulation material |
: |
High molecular Polyolefin Resin(Red & White) |
| Inner sleeve |
: |
Polyolefin with Reasonance control powder
+ Tungsten + Amorphous |
| Shielding |
: |
Copper tape |
| Outer sleeve |
: |
Lead free Polyvinyl Chloride |
| Conductor resistance |
: |
7.5 mΩ/m |
| Electrostatic capacitance |
: |
78 pF/m |
| ●Packaging |
: |
30m on spool |
|
| Fe |
Ni |
Si |
Al |
| 0.03 |
0.003 |
0.04 |
0.005 |
| S |
Ag |
Na |
K |
| 0.05 |
0.04 |
0.004 |
< 0.005 |
| U |
Th |
H |
O |
| < 0.0002 |
< 0.0003 |
< 0.03 |
< 1.0 |
|
| Typical Analysis(impurities) |
ppm/GD-MS Gas Analysis |
|
●The standard, the specification, and the price of the product might change without a previous notice.
●"ACROLINK®" and "Stressfree®" are registered trademarks of Acro Japan Co., Ltd.
●"D.U.C.C.®" is a registered trademark of Mitsubishi Materials Corporation.
|
|
|
|
|
|
